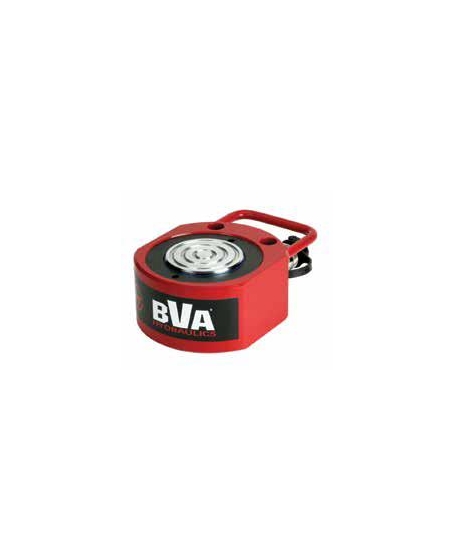

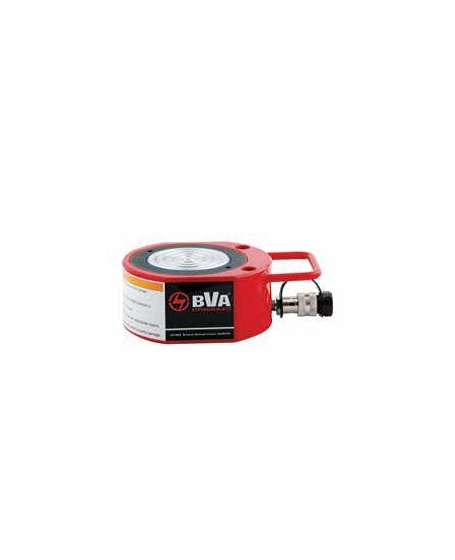

BVA Hydraulics Flat Body Cylinders HF5006 (50 ton)
SKU : bvahf5006
Price :
RM 1,428.00
Hydraulic Extremely Low Lifting Cylinders
| Cylinder Capacity (tons) | 50 |
| Stroke (in) | 0.63 |
| Model Number | HF5006 |
| Cylinder Effective Area (in2) | 9.86 |
| Internal Pressure at Capacity (psi) | 10,140 |
| Oil Capacity (in3) | 6.21 |
| Weight (lbs) | 14.9 |

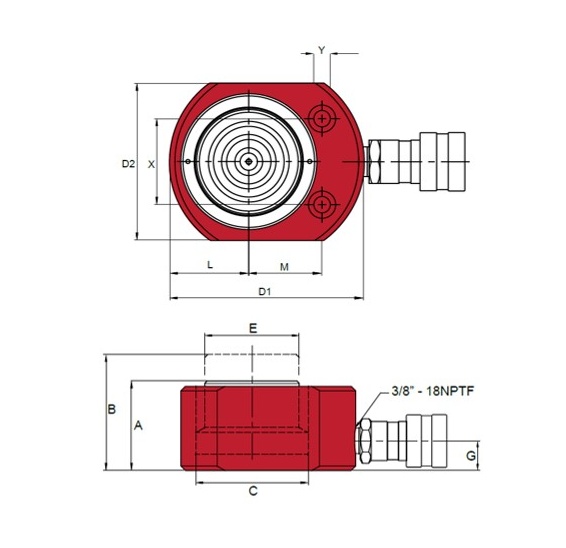

| Collapsed Height A (in) | 2.64 |
| Extended Height B (in) | 3.27 |
| Cylinder Bore Dia. C (in) | 3.54 |
| Outside Dia D1x D2 D (in) | 4.5x4.5 |
| Rod Dia. E (in) | 2.76 |
| Base to Port G (in) | 0.79 |
| Rod to Base L (in) | 2.25 |
| Rod to Mtg. Hole M (in) | 2.13 |
| Hole Pitch X (in) | 2.62 |
| Hole Dia Y (in) | 0.43 |
| Counter Bore Dia. (in) | 0.75 |
| Counter Bore Depth (in) | 0.50 |
